Monsoon Blinds
Technical Features of Monsoon Blinds:
- Body made of 55 microns - UV stabilized thick transparent PVC sheets.
- Head Rail - Extruded aluminum of 2mm wall thickness with Powder coated finish.
- Pulleys Cover plates & Bottom anchor for guide cables - Made of 304 grade Stainless steel for Anti rusting.
- Bracers - Extruded Aluminum 0f 2 mm wall thickness at aprox.12" interval.
- Guide Cables: 4 mm Dia high grade steel.
Product Highlights
- Designed to withstand lashing of heavy rain waters & intense wind pressure without blocking the outside view.
- Specially recommended for balconies/ food courts / roof top cafeterias / open air resorts / garden restaurants.
- Customized to fit perfectly and create better looking locales.
Quick Seller Details
| Sl No | Part Name | Specification |
| 1 | Top Channel | 50mm Square aluminium profile with 2mm thickness |
| 2 | Wind Pressure Bar | 25mm "C" Type aluminium profile with 2mm thickness |
| 3 | Mechanism | Stainless steel chord lock mechanism with guiding pulleys |
| 4 | Thread | Brown/White Nylon thread with 8mm thickness |
| 5 | Brackets | Stainless steel ‘L’ type with wall mounting |
| 6 | Steel Cable Guided Anchor | Stainless steel 304 grade |
| 7 | PVC Fabric | PVC fabric 55 microns with 99% UV protection |
| 8 | Load Cables | 6mm Stainless Steel guided cables |

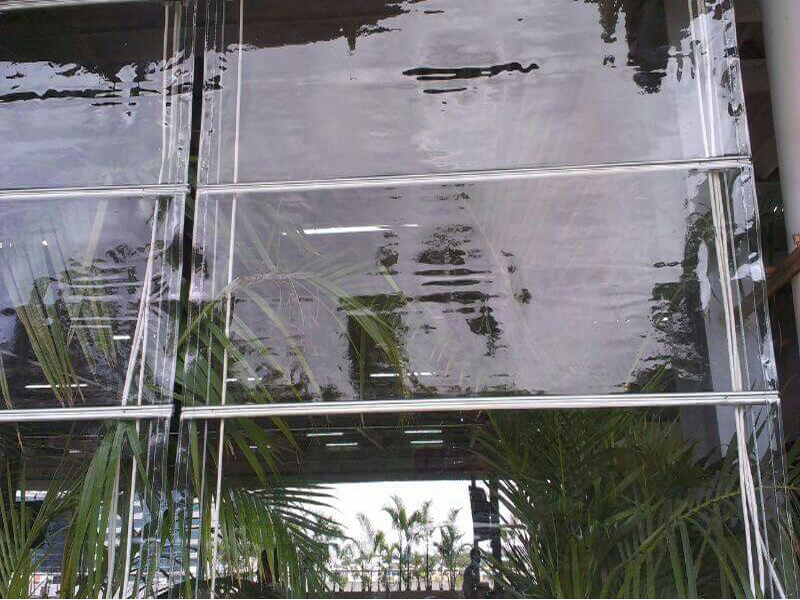

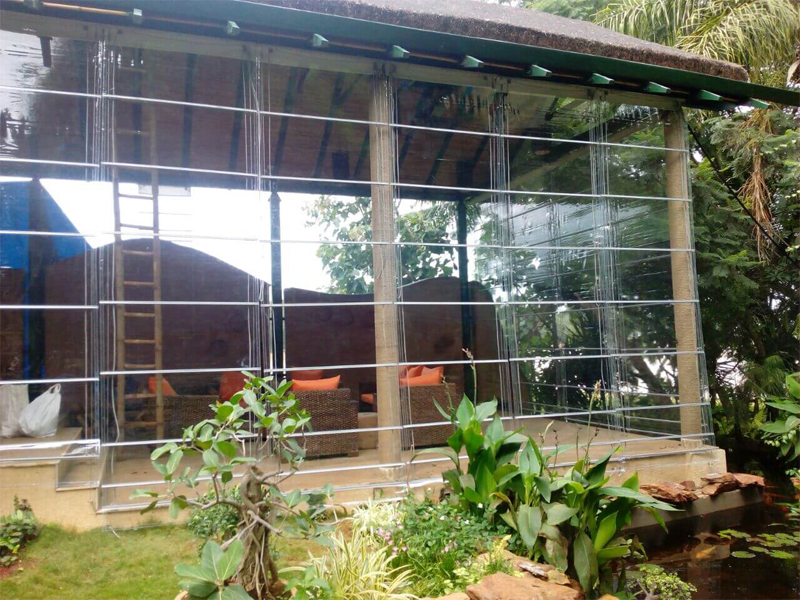

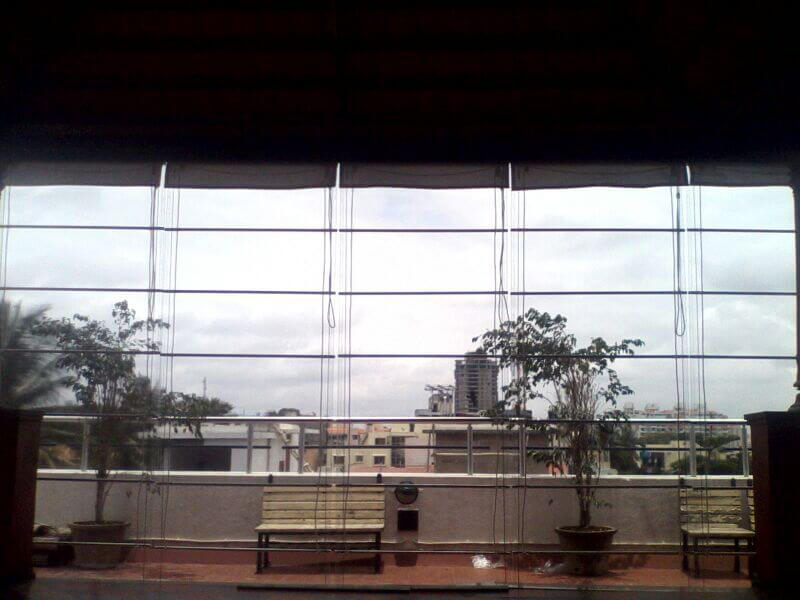

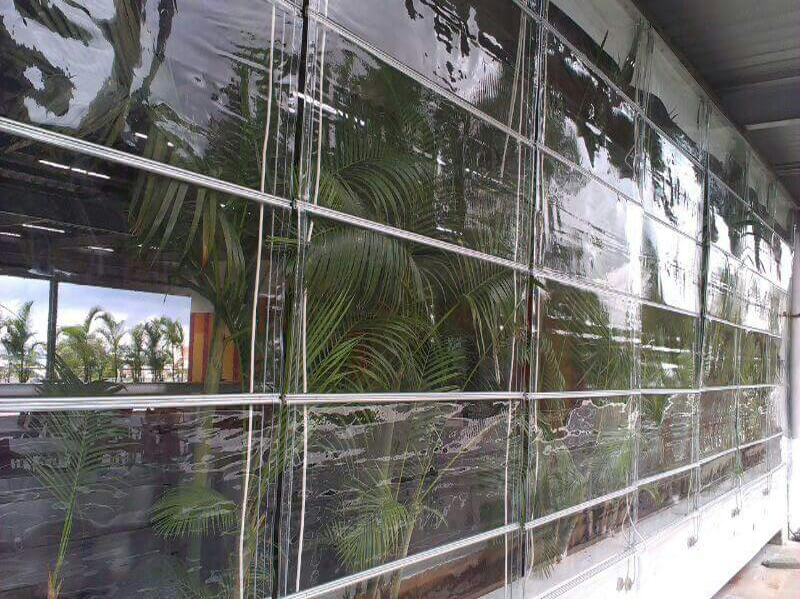

Gallery
